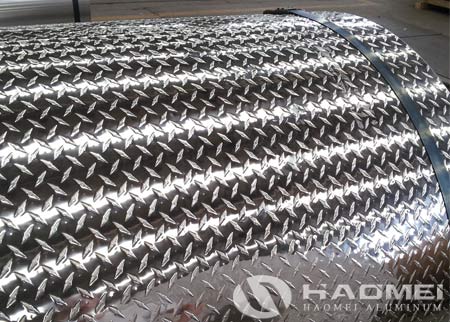

Diamond Tread Aluminum Sheet

Diamond tread aluminum sheet is strong, lightweight and is used to provide protection and traction on high traffic areas. It can be applied on signs,car inside and outside decoration, household appliances, aerospace etc.

This is very commonly used for tool boxes, wall panels, flooring, truck bed liners and trim, garage and workshop outfitting, step plates and any other application that needs the light weight and strength of aluminum diamond tread plate with increased traction of the raised tread pattern.

Specification of aluminum diamond tread plate:

Item	Diamond tread aluminum sheet
Grade	1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.
Temper	O, H12, H14, H16, H18, H24, H24, H26, H32, H34
Standard	ASTM-B209. EN573-1, GB/T3880.1-2006
Thickness	0.8 – 12mm
Width	400-1220mm
Length	max 6000mm for sheet or as required for coil
Pattern	big 5 bar / small 5 bar / 3 bar / diamond / pointer
Surface treatment	polished, mill finished, power coated, sand blast, anodized, brushed.
Surface Protection	Oleo phobic coating,protective film,paint coating.
Packing	Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.
Quality	Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.
MOQ	1-2 Metric ton
Free sample	Available
Delivery time	20-30 days after deposit

Advantages of aluminum diamond tread plate

Anti-skid. It is benefit from the raised surface of the checker plate.

Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.

Anti-high temperature and alkaline.

Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.

Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.

Application for diamond tread aluminum

Decoration usage: ceiling, furniture, wall, inside and outside, bar, windows, the autos.

Anti-skid usage: stairway, elevator, bus flooring, vehicle step, workshop flooring, ship deck, roofing, cabinet.

Protection usage: wall corner, electric shell.

Household usage: refrigerator, microwave oven, bags.

Aerospace and military usage: such as China’s current large aircraft, etc.
aluminum checkered sheet pattern aluminum checker plate pattern aluminum checker plate factory aluminum checker plate application

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Single	Total	Al
1060	0.25	0.35	0.05	0.03	0.03	_	_	0.05	0.03	0.03	_	99.6
1050	0.25	0.4	0.05	0.05	0.05	_	_	0.05	0.03	0.03	_	99.5
1100	Si+Fe:0.95		0.05-0.4	0.05	_	_	_	0.1	_	0.05	0.15	99
1200	Si+Fe:1.00		0.05	0.05		_	_	0.1	0.05	0.05	0.15	99
3003	0.6	0.7	0.05-0.2	1.0-1.5	_	_	_	0.1	_	0.05	0.15	R
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	_	_	0.25	_	0.05	0.15	R
3005	0.6	0.7	0.3	1.0-1.5	0.2-0.6	0.1	_	0.25	0.1	0.05	0.15	R
3105	0.6	0.7	0.3	0.3-0.8	0.2-0.8	0.2	_	0.4	0.1	0.05	0.15	R
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.1	_	0.25	_	0.05	0.15	R
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	_	0.1	_	0.05	0.15	R
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	_	0.25	0.15	0.05	0.15	R
5086	0.4	0.5	0.1	0.2-0.7	3.5-4.5	0.05-0.25	_	0.25	0.15	0.05	0.15	R
