Aluminium Checker Plate Price
Haomei supply cheap aluminium checker plate price while grantee the high quality. Our aluminium checker plate for sale have export to over 30 countries and won great reputation and feedback.
Aluminum checker plates manufactured at our facility shows exceptional characteristics of strength, durability, welding convenience and maximum skid resistance. We are the leading suppliers of aluminium checker plate for sale in China that offer heavy-duty aluminum plates with high strength applications.
Specification of aluminium checker plate for sale:
|Item||aluminium checkered plate|
|Grade||1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.|
|Temper||O, H12, H14, H16, H18, H24, H24, H26, H32, H34|
|Standard||ASTM-B209. EN573-1, GB/T3880.1-2006|
|Thickness||0.8 – 12mm|
|Length||max 6000mm for sheet or as required for coil|
|Pattern||big 5 bar / small 5 bar / 3 bar / diamond / pointer|
|Surface treatment||polished, mill finished, power coated, sand blast, anodized, brushed.|
|Surface Protection||Oleo phobic coating,protective film,paint coating.|
|Packing||Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.|
|Quality||Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.|
|MOQ||1-2 Metric ton|
|Delivery time||20-30 days after deposit|
Features of aluminum checker plate for sale:
Easily installed on project sites
Solid surface provides maximum traction area
Can retrofit over existing structures
Flexibility of design and many fabrication options
Continually meets coefficient of friction (COF) minimum requirements throughout life of product
Low maintenance and easy to clean
Naturally aesthetically pleasing
Does not absorb bacteria sustaining particles
Can be recycled, making it an environmentally friendly material
Application of aluminum checker plate price:
widely applied in various industries like vehicle and ship manufacturing, electronic appliances, fuel tank, boilers, curtain walls, logo and signs,etc.
- Light rail, vehicle, decorated inside and outside the car, footplate in the cars
- Roofs, facade cladding, ceilings, decoration, building frame, windows, doors,construction
- Stair treads, fuel tanks, piping, appliance fittings, etc

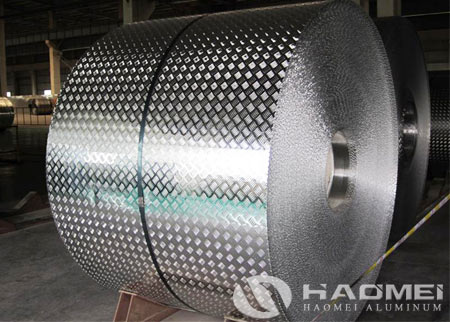

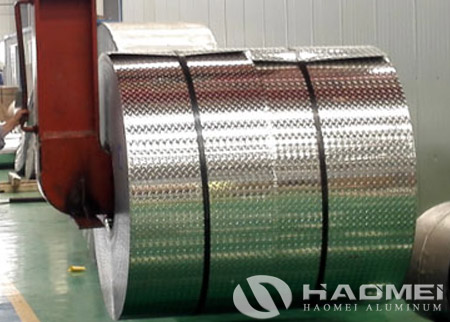

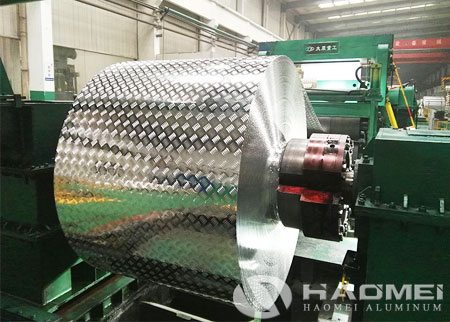

Aluminum Checkered coil ( aluminum diamond coil):
1). Each coil to be securely tied with two bands.
2). the contact points of these bands on the coil edge to be protect with edge protectors.
3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.
4). Wooden or iron pallet can be used or as your requirements

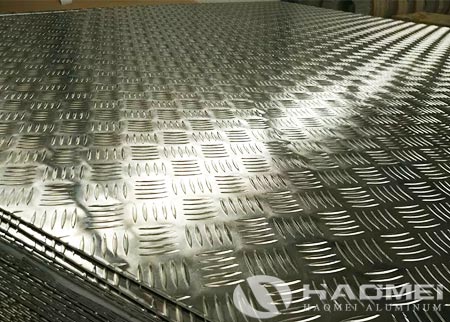

Aluminum checkered plate(aluminum diamond plate):
1) The package of aluminum diamond sheet meet the export standard
2)Plastic film and brown paper can be covered at customers’ need
3)Paper inter-leaf each piece
4)Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
– Standard seaworthy export packing,wooden pallets with plastics protection for the aluminum sheet/plate.
– 15-20 MT can be loaded into 20′ container and 40′ container.
– The other packing can be made base on the customer requirement.
– We have successfully worked with several shipping compaines that give us best price.
– Delivery Time: 1~7days workdays( in Stock);10~25days workdays( our of Stock).
-By express:DHL/UPS/FEDEX/EMS and our own express line.
-By air or By sea
