Diamond Plate Aluminum Sheets 4×8

Diamond plate aluminum sheets 4×8 is available in 6061-T6 and 3003-H14 sizes. The 6061-T6 alloy can have a dull or shiny finish and is harder and more durable, and the 3003-H14 has shiny bright finish, and is softer and more formable. diamond plate aluminum sheets 4×8 is commonly seen on fire trucks and truck toolboxes.

Our 4 by 8 sheet of diamond plate aluminum are cheaper, lighter, and more flexible than other 4×8 diamond plate sheets and they look great. These diamond plate aluminum sheets 4×8 look great when used as a wainscoting or wall guard, they’re much lighter, more affordable, and much easier for anyone to handle and install using simple tools.

4×8 aluminum diamond plate is 4×8 aluminum sheet with diamond pattern indicates the width x length = 4 foot x 8 foot = 1219mm x 2438mm. The thickness of the aluminum diamond plate is 0.8-7.0mm, the width ranges from 100mm to 2600mm, and the length is 500-16000mm. All products comply with national standards and international standards such as AMS and JIS. We can customize a variety of specifications according to customer needs.

Specification of diamond plate aluminum sheets 4×8:

Item aluminum diamond plate 4×8
Grade 1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.
Temper O, H12, H14, H16, H18, H24, H24, H26, H32, H34
Standard ASTM-B209. EN573-1, GB/T3880.1-2006
Thickness 0.8 – 12mm
Width 400-1220mm
Length max 6000mm for sheet or as required for coil

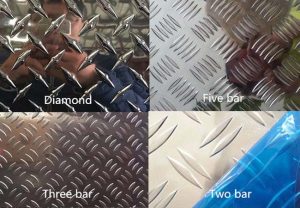

Pattern big 5 bar / small 5 bar / 3 bar / diamond / pointer
Surface treatment polished, mill finished, power coated, sand blast, anodized, brushed.
Surface Protection Oleo phobic coating,protective film,paint coating.
Packing Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.
Quality Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.
MOQ 1-2 Metric ton
Free sample Available
Delivery time 20-30 days after deposit


Features of 4 by 8 sheet of diamond plate aluminum:

Easily installed on project sites
Solid surface provides maximum traction area
Can retrofit over existing structures
Flexibility of design and many fabrication options
Continually meets coefficient of friction (COF) minimum requirements throughout life of product
Low maintenance and easy to clean
Naturally aesthetically pleasing
Does not absorb bacteria sustaining particles
Can be recycled, making it an environmentally friendly material

Application of 4×8 aluminum diamond plate price:

Its diamond texture gives excellent anti-skid properties, and it is often used in industrial settings for stairways, catwalks, ramps, and walkways where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make aluminum diamond plate 4×8 a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck beds and trailer floors.
aluminum checkered sheet pattern aluminum checker plate pattern aluminum checker plate factory aluminum checker plate application

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Other Al
Single Total
1060 0.25 0.35 0.05 0.03 0.03 _ _ 0.05 0.03 0.03 _ 99.6
1050 0.25 0.4 0.05 0.05 0.05 _ _ 0.05 0.03 0.03 _ 99.5
1100 Si+Fe:0.95 0.05-0.4 0.05 _ _ _ 0.1 _ 0.05 0.15 99
1200 Si+Fe:1.00 0.05 0.05 _ _ 0.1 0.05 0.05 0.15 99

Aluminum Checkered coil ( aluminum diamond coil):

1). Each coil to be securely tied with two bands.

2). the contact points of these bands on the coil edge to be protect with edge protectors.

3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.

4). Wooden or iron pallet can be used or as your requirements


Aluminum checkered plate(aluminum diamond plate):

1) The package of aluminum diamond sheet meet the export standard

2)Plastic film and brown paper can be covered at customers’ need

3)Paper inter-leaf each piece

4)Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
