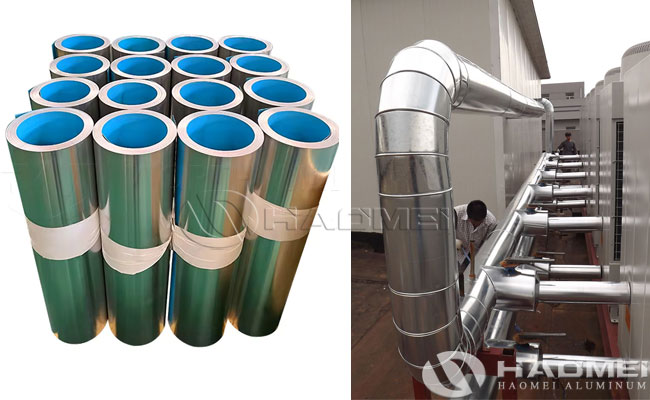

Cold water pipe insulation aluminum cladding are specialized insulation materials for industrial HVAC, cold chain chemical, and municipal water supply systems. As a professional aluminum cladding product exporter, we have optimized the process for cold water pipe insulation aluminum cladding, which differs from conventional high-temperature pipeline insulation aluminum materials, specifically addressing the special conditions of cold water pipelines, including long-term low temperatures, condensation, and high humidity. It boasts core properties such as moisture resistance, low-temperature stability, and prevention of condensation-induced cold loss, making it a core industrial material for standardized cold water pipeline insulation systems worldwide.
The mainstream aluminum cladding for cold water pipeline insulation utilize two compliant alloy systems: 1060 pure aluminum and 3003 aluminum-manganese, meeting international standards for pipeline insulation engineering materials. Among them, the 1060-H14/H18 temper aluminum coils are high in purity, uniform in texture, and excellent in toughness, preventing brittleness and hardening under low-temperature conditions. They offer outstanding cost-effectiveness and are suitable for general commercial and municipal cold water pipeline insulation projects. 3003 rust-proof aluminum coils, with the addition of manganese alloy elements, significantly enhance the moisture resistance and corrosion resistance of the sheet material, providing stronger fatigue resistance. They are suitable for long-term use in cold chain plants, underground cold water pipelines, and low-temperature conditions in high-humidity coastal environments, making them the preferred specification for mid-to-high-end overseas cold water infrastructure projects. The standard thickness is 0.2–1.2mm, but customized specifications are available to meet various pipe diameter covering requirements.
Based on the protection needs of different operating conditions, cold water pipe insulation aluminum cladding coils are divided into three categories to precisely match differentiated cold insulation construction scenarios.
The standard bare insulation aluminum coil is the basic model, or with an orange peel embossed surface structure to enhance the rigidity of the sheet material. It is suitable for covering cold water pipelines in dry indoor environments, offering convenient construction and high cost-effectiveness.
The kraft paper-coated insulation aluminum coil is the core moisture-proof model. The surface is composite with waterproof and vapor-barrier kraft paper, which strongly blocks external moisture penetration, fundamentally solving the problems of moisture absorption, condensation, and dripping in cold water pipeline insulation layers. It is the main product for cold water projects in high-humidity environments.
The polysurlyn coated aluminum coil is a high-end protective type, featuring a transparent protective film that prevents scratches and wear from sea transport and on-site construction, ensuring a high-quality appearance for projects. It is suitable for high-end overseas commercial complexes and large-scale industrial cold chain projects.
Low-temperature adaptability and moisture-proof properties are the core characteristics of aluminum cladding for cold water pipeline insulation. Compared to ordinary aluminum pipe insulation materials, this series of aluminum cladding coils undergoes low-temperature tempering, ensuring stable performance from sub-zero temperatures to room temperature, with no risk of shrinkage, deformation, or cracking. The aluminum material itself has excellent sealing properties, completely encasing the insulation layer and blocking cold loss caused by air convection. Simultaneously, the embossing process increases the surface tension of the sheet, and combined with film and paper coating processes, forms a double-layer moisture-proof protective structure, effectively solving the core problem of condensation and moisture return in cold water pipelines, preventing insulation layer failure due to water immersion and pipe corrosion.
These targeted advantages make aluminum cladding an indispensable material for cold water pipeline insulation systems.
Firstly, its excellent vapor barrier and cold insulation performance significantly reduces cold loss from chilled water pipes, stabilizes the temperature of the medium in the pipes, and results in significant energy savings and reduced consumption.
Secondly, its moisture-proof and condensation-proof properties completely avoid problems such as pipe dripping, wall dampness, and equipment corrosion, improving system operational stability.
Thirdly, the flexible and easily bendable material has a high degree of fit, making it suitable for the construction of various round and irregularly shaped chilled water pipes. It is maintenance-free, has a long service life, effectively reduces the operation and maintenance costs of overseas projects, and is widely applicable to various industrial and civil chilled water insulation infrastructure projects worldwide.
