Aluminium Grip Plate

0 Comment

Ordinary aluminium plate often cannot meet specific ground, especially the protruding shape, but aluminium grip plate can. Checkered aluminum grip plate can be used in specific places, especial for anti slip and decoration effect. Let’s learn about grip aluminium plate specifications and other related knowledge.

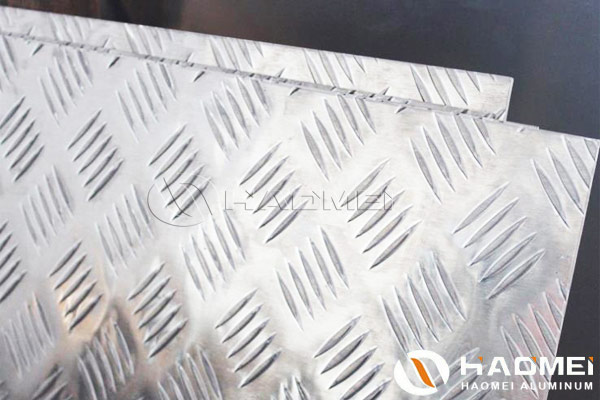

aluminium grip plate

As the name suggests, the aluminium grip plate is an aluminium plate with raised patterns seen as grip on the surface. The general patterns are 1 bar grip, 2 bars grip, 3 bars grip, 5 bars grip, diamond-shaped, and some are oblate, T-shaped, etc., also known as net text aluminium plates. The shape of the grip aluminum checker plate is very beautiful, and the most important feature is that it has a strong anti-skid property, so it is very practical and is widely used in many occasions. The fields of application are usually places where anti-skid is required, such as shipbuilding, machinery, decoration, construction, transportation, etc.


The basic thicknesses of the aluminum grip plate on the market are mainly 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, except that there are no 6.5mm and 7.5mm, each increase of 0.5mm thickness, there is a size of checker grip aluminum plate in mm.


In terms of the thickness of aluminium grip plate, it is normal to have deviations. When the thickness is 2.5-3.5mm, the allowable and standard deviation is 0.3mm; when the thickness is 4mm and 4.5mm, the allowable deviation is 0.4mm; when the thickness is 5mm and 5.5mm, the allowable deviation is 0.4mm. , the allowable upward deviation is 0.4mm and the downward deviation is 0.5mm; when the thickness is 6mm, the allowable upward deviation is 0.5mm and the downward deviation is 0.6mm; when the thickness is 7mm, the allowable upward deviation is 0.6mm and the downward deviation is 0.7mm; when the thickness is 8mm, the allowable upward deviation is 0.6mm, and the downward deviation is 0.8mm. These errors are normal as long as they are within the allowable range.
