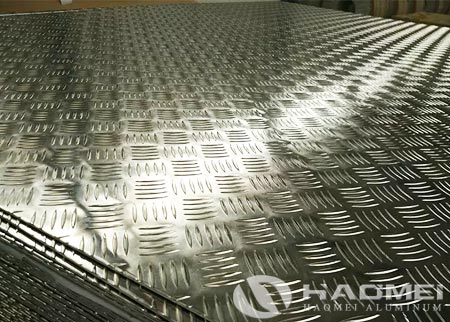

5 Bar Aluminum Tread Plate
5 bar aluminium tread plate has very good corrosion resistance to seawater and marine and industrial atmospheres. It also has very good weldability and cold formability. Aluminium 5 bar tread plate is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Aluminum tread plate 5 bars is commonly seen on fire trucks and truck toolboxes.
The added texture reduces the risk of slipping, making 5 bar aluminum plate sheet a solution for stairs, catwalks, walkways and ramps in industrial settings. Its non-skid properties mean that 5 bar aluminium checker plate is frequently used on the interior of ambulances and on the footplates of firetrucks. Additional applications include truck beds and trailer floors. 5 Bar aluminum tread checkered plate sheet can also be used decoratively, particularly highly polished aluminum variants.
Specification of 5 bar aluminum tread plate:
|Grade||1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.|
|Temper||O, H12, H14, H16, H18, H24, H24, H26, H32, H34|
|Standard||ASTM-B209. EN573-1, GB/T3880.1-2006|
|Thickness||0.8 – 12mm|
|Length||max 6000mm for sheet or as required for coil|
|Pattern||big 5 bar / small 5 bar|
|Surface treatment||polished, mill finished, power coated, sand blast, anodized, brushed.|
|Surface Protection||Oleo phobic coating,protective film,paint coating.|
|Packing||Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.|
|Quality||Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.|
|MOQ||1-2 Metric ton|
|Delivery time||20-30 days after deposit|
Application for 5 bar aluminum diamond plate:
As a result of it good property in anti-corrosion, this 5 bar aluminum tread plate is commonly used in moist environments like the bottom of cars, slippery floors, equipment floor, stairs, platform, bus and auto floor.
Advantages of aluminium 5 bar tread plate:
High rust-resistance, High Hardness,Good anti-oxidation, Wear-resisting, Easy to coating, Heat-resisting, Low Density, processability, High quality, Hot sell, Durable, Lower price, Widely used.
Factory of 5 bar aluminium checker plate:
|Mill finish Surface||Bright finish Surface|
|Pattern height||Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm||Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm|
|Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm||Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm|
|Sheet Thickness above 2.0mm, bar height: 1.50mm||Sheet Thickness above 2.0mm, bar height: 1.50mm|
|Width (mm)||Maximum 1500mm||Maximum 1650mm|
|Length (mm)||Maximum 6000mm||Maximum 6000mm|
|Paper interleaves||On request for selected||On request for selected|
|Normal size||1200×2400mm, 1219×2438mm, 1219×3048mm||1200×2400mm, 1219×2438mm, 1219×3048mm|
Aluminum Checkered coil ( aluminum diamond coil):
1). Each coil to be securely tied with two bands.
2). the contact points of these bands on the coil edge to be protect with edge protectors.
3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.
4). Wooden or iron pallet can be used or as your requirements
Aluminum checkered plate(aluminum diamond plate):
1) The package of aluminum diamond sheet meet the export standard
2)Plastic film and brown paper can be covered at customers’ need
3)Paper inter-leaf each piece
4)Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
